Die-cut paper cup and plate punching machine for food tools

Company IntroductionDayuan Industrial Co. Ltd is a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission" Create Value for Customers". Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.As one of the companies tha

Featured Products

Company Introduction
Dayuan Industrial Co. Ltd is a professional manufacturer of eco-friendly paper processing machines, following the enterprise development mission" Create Value for Customers". Founded in 1995, the company is located at Zhongshan, Guangdong, the hometown of Sun Yat Sen.

As one of the companies that first engage in self-innovative development of eco-friendly paper processing machines in China, Dayuan has won extensive acknowledgment and praise from the start to development and from China to the world. Now, it has become a leading supplier of eco-friendly paper processing machines in China.
Die Cutting Paper Cup and Plate Punching Machine for Food Tool

With more than 20'years exploration and development, the sales volume of four series self-innovative products(Ice Cream Paper Cone Machine, Carton Erecting Machine, Paper Cone Cup Machine and Punching Machine) rank first in the domestic market, the products have also exported to more than 70 countries and are favorably reviewed by domestic and overseas customers.



Die Cutting Paper Cup and Plate Punching Machine for Food Tool
Die Cutting Paper Cup and Plate Punching Machine for Food Tool

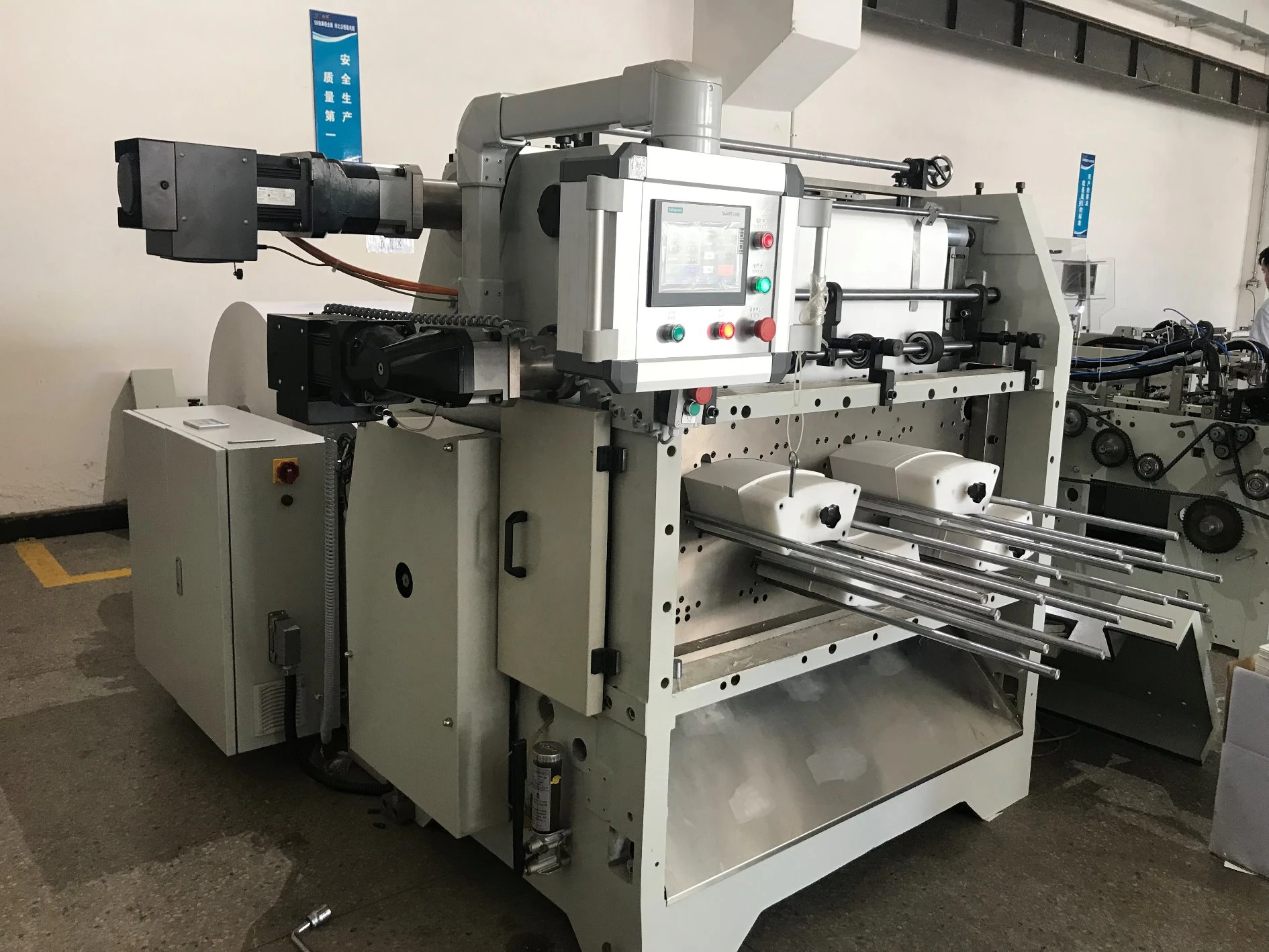

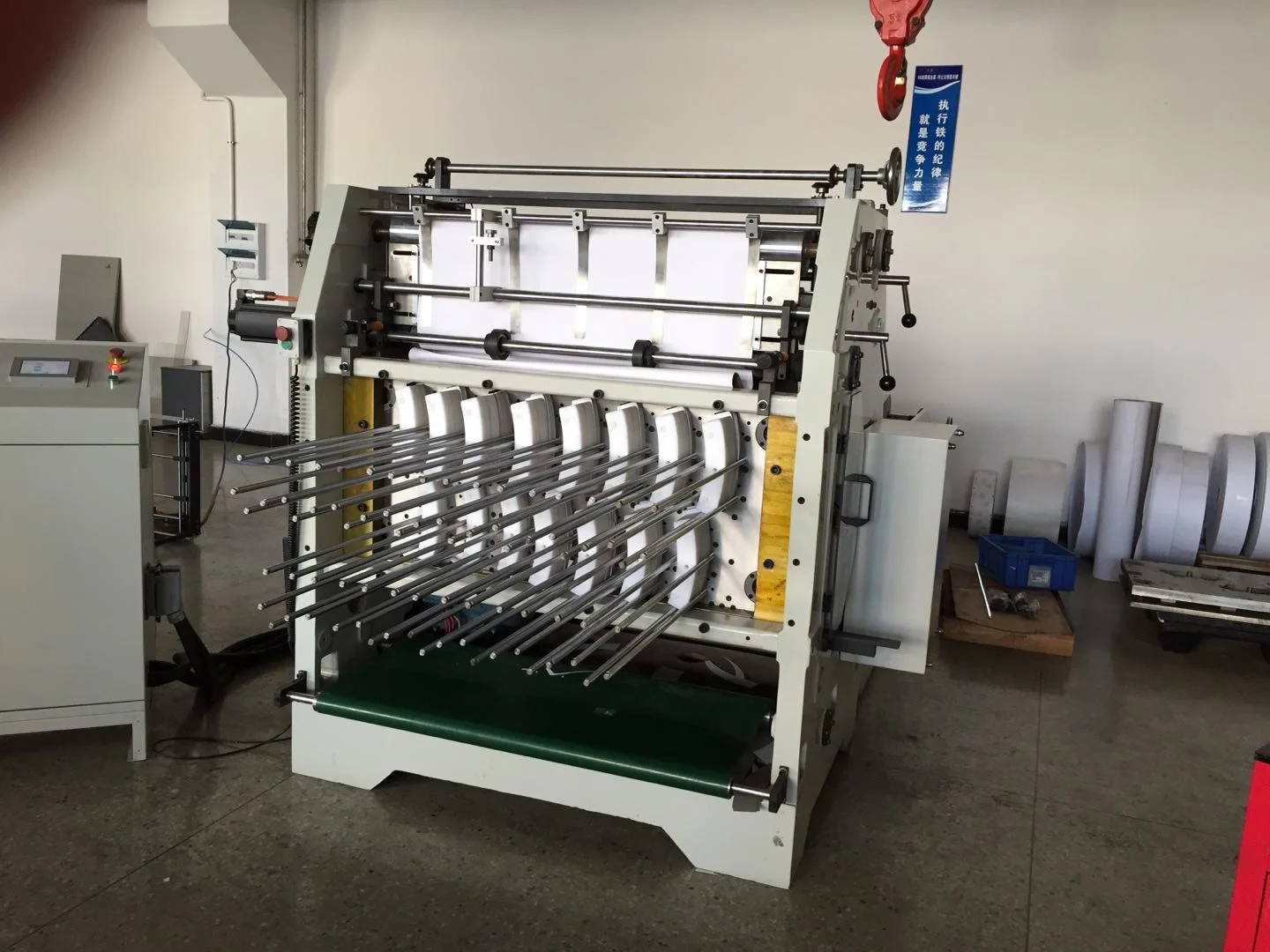

Machine Introduction
Dayuan Paper Cup Punching Machine Is designed according to European industrial standard. Initially developed in China, the products have achieved the CE certification and have been sold to many countries in the world. This punching and die cutting machine adopts micro-computer to regulate the speed , servo motor to feed paper and use the photo sensor to cut and collect blanks at a high speed. It can die cutting by setting certain length or following color marks. Compared with the traditional Hydraulic machine, it is much more efficient, time-saving, material-saving, and much more profitable.With high quality and efficiency, it is an ideal choice for you to punch paper cup blank.
Die Cutting Paper Cup and Plate Punching Machine for Food Tool


Die Cutting Paper Cup and Plate Punching Machine for Food Tool


Machine Specification
Voltage380V/50HZ
PowerCC880&CC1080:  9KW;                                                           CC1400:13KW
Max speedup to 450 stroke/min
Maximum web diameter1500mm
Max web widthCC880: 880mm;                                                                       CC1080:1080mm
Materials80-400 gsm
Print to punch tolerance±0.25mm
Max.punching areaCC880:860mm x 520mm;                                                       CC1080: 1060mm x 520mm;                                                   CC1400:1380mm x 520 mm
Paper Cup Or Plate SampleFree , Freight collect
Sample time1-3 days
Mass production45 days
Change tool timeabout one hour
Main Configuration1.Web guiding system;
2.Tracking the print logo system;
3.Tension control system;
4.De-curling system;
5.One set of mould;
6.Rexroth servo control system.


Die Cutting Paper Cup and Plate Punching Machine for Food Tool

Die Cutting Paper Cup and Plate Punching Machine for Food Tool

Sample Picture

Die Cutting Paper Cup and Plate Punching Machine for Food Tool


Exhibition

Die Cutting Paper Cup and Plate Punching Machine for Food Tool


Shipping And Packaging
ShippingBy sea, or as your requirement to do
PackagingBy Strong Wooden Case
Packaging DimensionsCase 1Size:   2500mm x 2130mm x 1350mm
Net weight : 2400 kg
Gross weight: 2500 kg
Case 2Size:2000mm x1380mm x 2100mm
Net weight :2100 kg
Gross weight:2150 kg
Case 1 (CC1400)Size:2500mm x2500mm x 1350mm
Net weight: 2550 kg
Gross weight: 2700 kg
Case 2 (CC1400)2000mm x1750mm x 2100mm
Net Weight: 2250 kg
Gross Weight: 2400kg

Die Cutting Paper Cup and Plate Punching Machine for Food Tool

Die Cutting Paper Cup and Plate Punching Machine for Food Tool

FAQ
Q: Are you a factory or trading company ?
A: We are factory with many years of experience in this industry.

Q: Where is your factory located? How can I visit there?
A: Our factory is located in Zhongshan City, Guangdong Province, China, around 30 minutes train from Guangzhou.

Q: How can I get some samples ?
A: We are honored to free offer you sample to test it.

Q:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.

Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacture.You will get competitive price and better quality.

Q: What payment term ?
A: T/T 30% down payment ,balance before delivery ,or LC at sight .

Q: How does your factory do regarding quality control?
A: Quality is priority. Our factory always attaches great importance to quality control from the beginning to the end. Our factory has gotten CQC,ISO, CE certificates.


Die Cutting Paper Cup and Plate Punching Machine for Food Tool
More details, welcome to visit our website:
dayuanchina.en.made-in-china.com  or  https://dayuanchina.en.made-in-china.com/ , or send inquiry to us !

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
