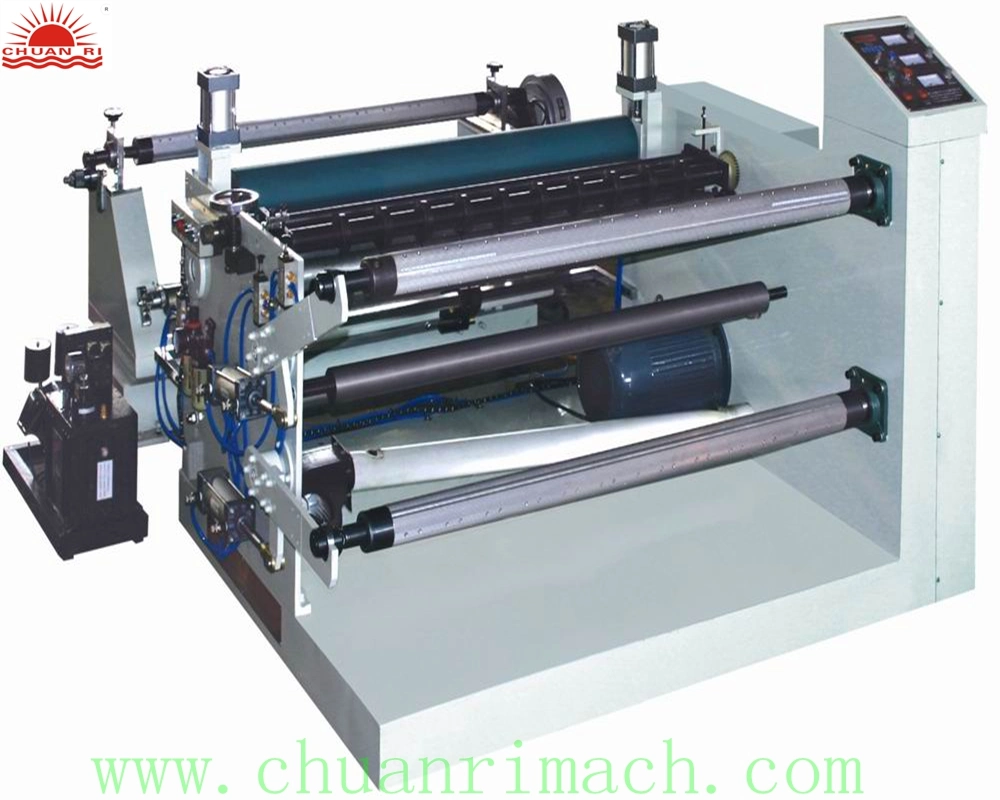

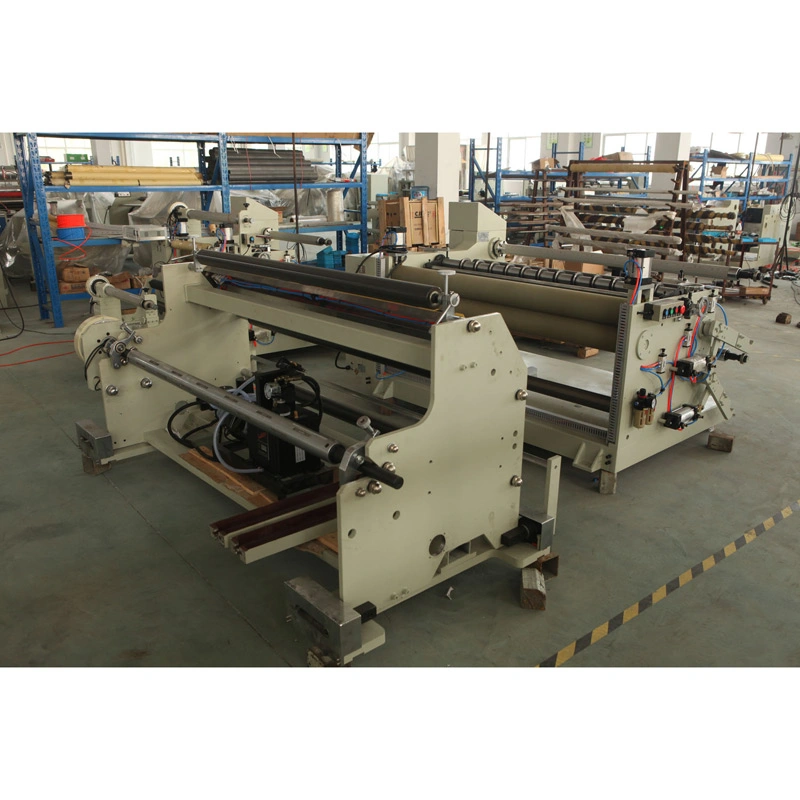

Paper roll cutter/automatic slitter/paper core cutter

Main Parameters:ModelFQ-1300 SlitterMax Feeding Width(mm)1300Main Engineer Power(kw)4Speed(T/M)110Size(L*W*H)(m)2.4*2*1.3Weight(kg)1200Unwinding diameter(mm)800Rewinding diameter(mm)450precision(mm)±0.10Power380V 50HZFunctional characteristics:This machine is slitting equipment of high precision and high sensitivity, with

Featured Products

Main Parameters:
ModelFQ-1300 Slitter
Max Feeding Width(mm)1300
Main Engineer Power(kw)4
Speed(T/M)110
Size(L*W*H)(m)2.4*2*1.3
Weight(kg)1200
Unwinding diameter(mm)800
Rewinding diameter(mm)450
precision(mm)±0.10
Power380V 50HZ

Functional characteristics:
This machine is slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials. Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling, with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized. It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc. There are two selection for main engine, single electric motor, double electric motors.

Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellphone tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc. This machine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.
