Carton/Tray/Bowl High Speed ​​Carton Forming Machine

Description: Carton Erecting Machine (paper box forming machine) is an automatic machine, specialized in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc. The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box

Featured Products

Description:
Carton Erecting Machine (paper box forming machine) is an automatic machine, specialized in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.
The food box (carton, container, dish, tray) is widely used as burger box, hot-dog box (tray), one block box, food pail box (Chinese food box, take-away box), fries box (chips box, chips tray), lunch box, meal box, etc.

Advantage:
  1. Servo motor control the forming mold (press mold) (advanced, more accurate than mechanism cam control)
  2. Using full servo system (3 servos in machine replace cam system)

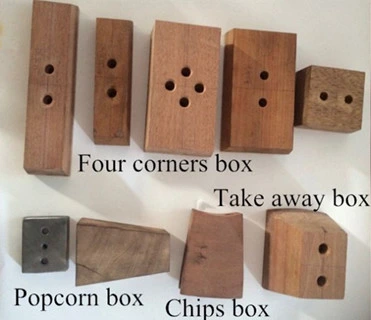

  3. Easy exchange molds to make different products, charging and adjusting time is very short.
  4. PLC program control the whole line, available to make complicated boxes.
  5. Automatic collection,
  6. Human being designed control button and panel, more easy and safe runs by user.
  7. PLC could save the adjusted parameter after you finish adjustment, it will help you save time.
Technical Specification
Model
Speed60~180 box/minute
Speed depends on paper blank size.
Welding MethodWater-Glue System Welding;
Available Material150~600gsm board, paperboard, paper, corrugated cardboard, Fluted paper, etc.
Material ThicknessMax. 1.5mm
Paper Size: L=Length: 100-430mm
W=Width: 100-630mm
H=Height: 15mm-320mm
Angle: 5~50 degrees
Total Power4.5KW
Weight2000KG
Machine Size (L*W*H)3520*1510*1420Pack Size3550*1510*1700
Power Source3-phase, 380V, 50/60Hz
Air SourceCompressed air at 6-10 bar needed
The product complies with the regulatory requirements and standards on CE conformity and
therefore carries the CE mark.

>>> RFQ
1.Q:What is the machine warranty?
    A:one year.
2.Q:Does your machine with CE certificate?
    A:Yes.
3.Q:What is the production time while placing order?
    A:About 30 days
4.Q:What is the delivery time?
    A:Within 30 days after get the payment.
5.Q:Can your company handle shipping for customers?
   A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
6.Q:Does the packing strong?
   A:Yes, of course! All of our export packing is with strong wooden pallets, all are confirmed to export packing standard.
7.Q:How about after-sales service process?
   A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
8.Q:Are you manufacturer?
   A:Yes, we are manufacturer with 10-year experience and profession.
9.Q:Do you have stock product to sell?
   A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, and your order will be highly attention to manufacture.
10.Q:Do you inspect the finished products?
   A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .
11.Q:What's the payment term?
   A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
We are professional manufacturer since 2010. We believe our products will provide you with great business benefits and advantage.
