Box Pattern Material Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Cardboard Cutting Plotter

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter Zhuoxing\'s CNC knife cutting machine it an ideal for carton/box making and foams cutting.This is a multifunction cutting machine, realizes standard cutting, angling/V cutting, drawing and more functions.Special desi

Featured Products

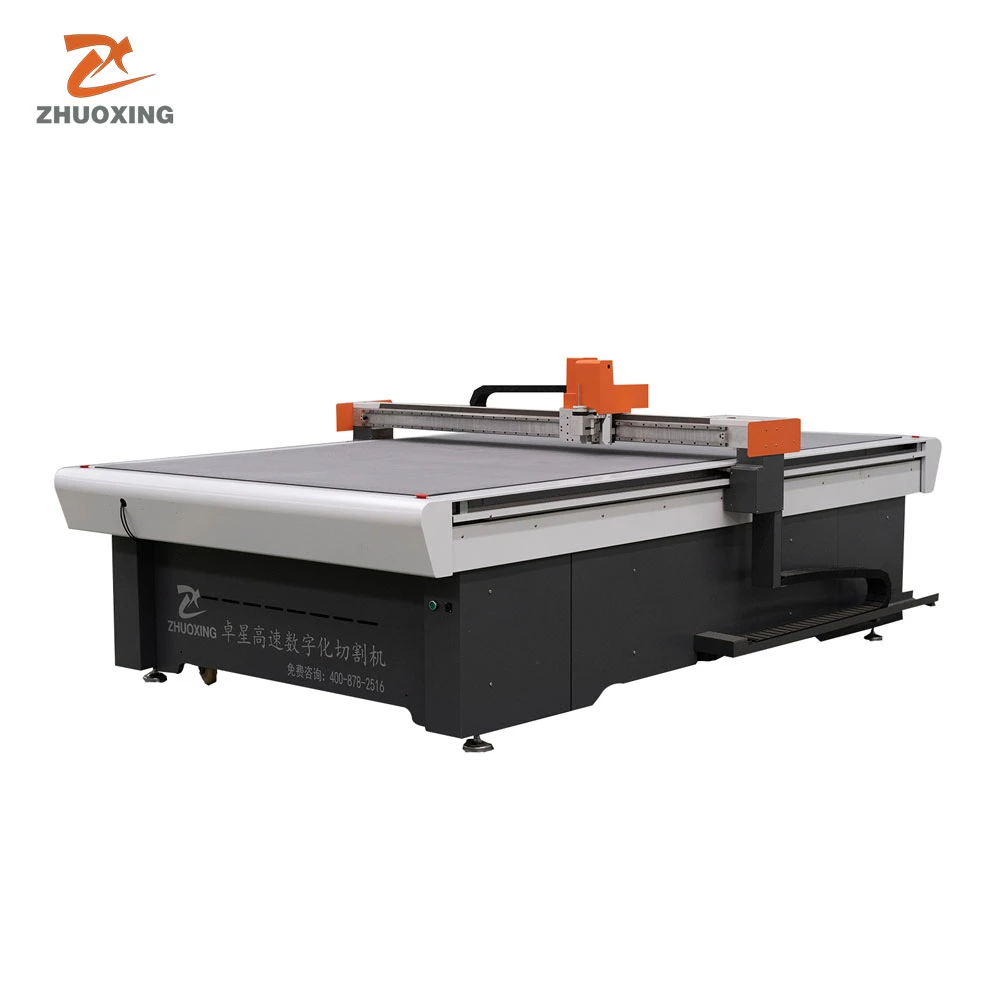

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter

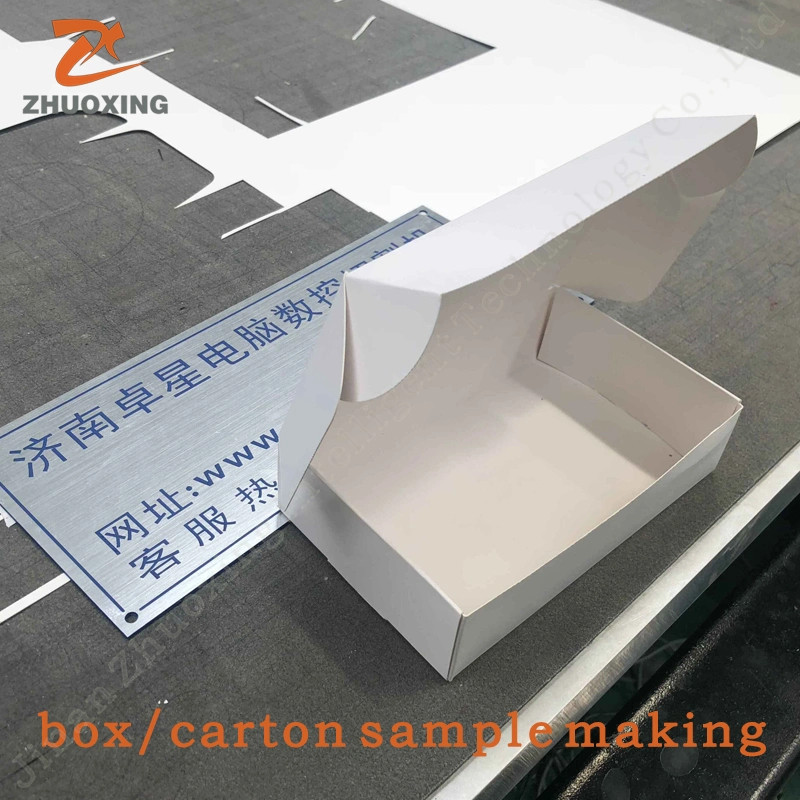

Zhuoxing's CNC knife cutting machine it an ideal for carton/box making and foams cutting.

This is a multifunction cutting machine, realizes standard cutting, angling/V cutting, drawing and more functions.
Special design can cut materials up to 100mm.

Zhuoxing machine works without die, any shape, any design can become a product in seconds.

Cutting controlled by computer, upload any DXF / PLT format to the machine, it will cut according to it quickly and accurately.

Dieless cutting machine supply the maximum flexibility to help our customer suit the changing requests.

Cutting by knife, edge will be smooth and clean.

With universal module, different cutting tools can be replaced immediately, then realize different functions.



There are some advantages about oscillating knife cutting machine:

1. machine working, realize 24 hours efficient & uninterrupted cutting.

2. cnc cutting, recognize pattern from computer, any design can become a product in no time.
3. It cuts by knife, physical cutting not react with materials, no smoke and smell will produce during cutting, more environmental-friendly.
4. easy to operate, one person who is inexperience can learn it within one day.
5. future maintenance is easy and safer.

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter
Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter


Parameter


Model

ZX-2516V

ZX-3016V

ZX-3020V

Working area

2500×1600mm

3000×1600mm

3000×2000mm

Max cutting speed

1200mm/s

Applicable materials

corrugated paper board, honeycomb paper board, cardboard, EVA, EPE foam, plastic hollow sheet, etc.

Standard function

Cutting, creasing
Opitional function

Positioning cutting, V-shape grooving, marking, feeding, nesting

Working thickness

≤25.0 mm (customization available for thicker material)

Cutting tolerance

±0.1mm

Transmission interface

Ethernet

Transmission system

Servo Motor, Linear guide rail, rack and pinion, belt

Fixed mode

Vacuum absorb

Safety device

Infrared adopted; sensitive response; safe and reliable

Supply voltage

                    AC 110V/220V/380V±10%, 50HZ/60HZ, customized

Rated power

11KW



Appliaction

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter

Customer Photos

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter
Company Information


Jinan Zhuoxing Intelligent Technology Co.,Ltd.

Jinan Zhuoxing Intelligent Technology Co. Ltd is a high-tech enterprise which is specialized in research and development, production, sales and service of CNC knife cutting equipment and related CAD/CAM software system.

Zhuoxing supply an automated, computerized cutting systems cut with accuracy and repeatability and have been engineered for single, low-ply cutting requirements.

Zhuoxing is now and will be powered by innovation and uncompromising quality.

In the future, ZHUOXING would like to lead more national enterprises to upgrade present industry from labor-intensive productivity to quality driven innovations. Making Created-in-China product enjoys upper market level.

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter


Why choose ZHUOXING?


1. 9 years experience only focus on oscillating knife cutting machine and its software
2. own proprietary technology, professional design team
3. experienced after-sale service team
4. 24-hour in time reply
5. periodic follow-up



Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter



Packaging & Shipping

Box Pattern Materials Cutting Machine Polycarbonate Cutting Machine Gift Box CNC Paper Board Cutting Plotter





FAQ


Question: Are you a factory or trading company?

Answer: We are a factory and we have our own know how knowledge.



Question: Do you accept customized products?

Answer: Yes, our personalized cutting machine is steady and reliable.



Question: Can you provide OEM/ODM service?

Answer: Yes, we are factory and we have lots of OEM or ODM experience.



QuestionIf I don't know this machine before, how can I operate it?
Answer: We supply face to face training and provide operating video, user manual, and telephone calls to help.
It's easy to learn, one inexperience people can learn it within one day.



Question: What should I do if the machine has any problem in future?
Answer: We supply online/phone technical support and door to door service. Anything confuse or not goes well, pls contact us in the first time.

Question: What's the warranty policy?
Answer: Standard warranty is 12 months upon delivery.
Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period.
Problems caused by wrong operate will also well-solved, but not for free.

We also supply life long after-sales service. No matter when, you can count on our best service for your machine.
